38mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Double Gypsy Windlass
उत्पाद विवरण:
| उत्पत्ति के प्लेस: | चीन |
| ब्रांड नाम: | Zhongyuan Marine Equipment |
| प्रमाणन: | CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS |
| मॉडल संख्या: | मानक या अनुकूलित |
भुगतान & नौवहन नियमों:
| न्यूनतम आदेश मात्रा: | 1 इकाई |
|---|---|
| मूल्य: | Based on quotation |
| पैकेजिंग विवरण: | मानक फूस या अनुकूलित पैकिंग निर्यात करें |
| प्रसव के समय: | परियोजना आवश्यकताओं के आधार पर |
| भुगतान शर्तें: | टी/टी, एल/सी |
| आपूर्ति की क्षमता: | परियोजना आवश्यकताओं के आधार पर अनुकूलित उत्पादन |
|
विस्तार जानकारी |
|||
| लंगर श्रृंखला व्यास: | 38 मिमी | रेटेड पुल लोड: | 46.9kN |
|---|---|---|---|
| चेन स्पीड: | 9 मीटर/मिनट | समर्थन भार: | 162.6KN |
| डीज़ल इंजन: | एस4100 | वर्म गियर बॉक्स: | WD190, आदि |
| 125 पीसी/बैग, 250 पीसी/गत्ते का डिब्बा: | 32F16A | संख्या Gypsy: | डबल या सिंगल |
| रंग: | ग्राहक निर्दिष्ट | संघटन: | मुख्य रूप से डीजल इंजन मुख्य इंजन और इलेक्ट्रिक स्टार्ट सिस्टम, कीड़ा गियर बॉक्स, गियर बॉक्स, आधार, |
| वर्गीकरण प्रमाण पत्र: | सीसीएस / एबीएस / डीएनवी / एलआर / एनके / बीवी / केआर / रीना / आईआरएस / आरएस / सीआरएस | ||
उत्पाद विवरण

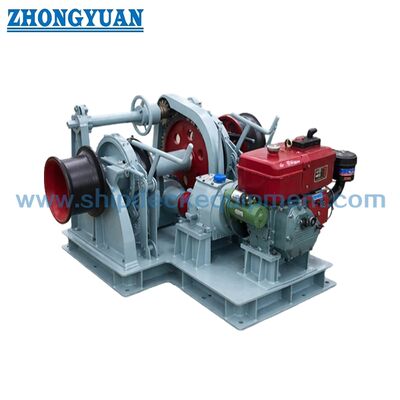

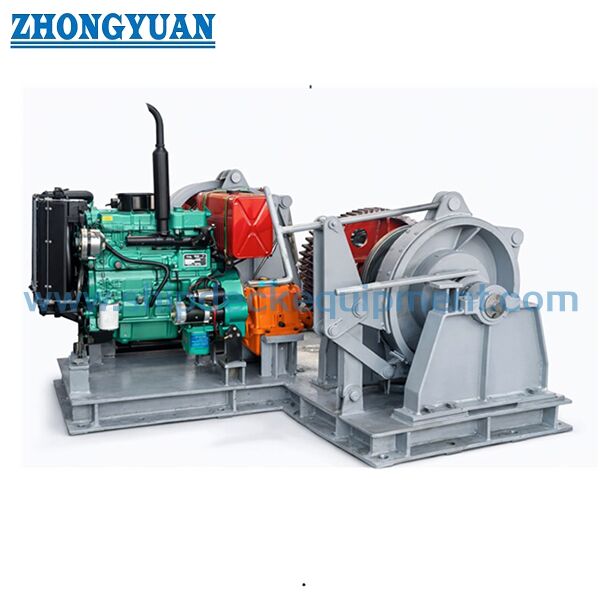

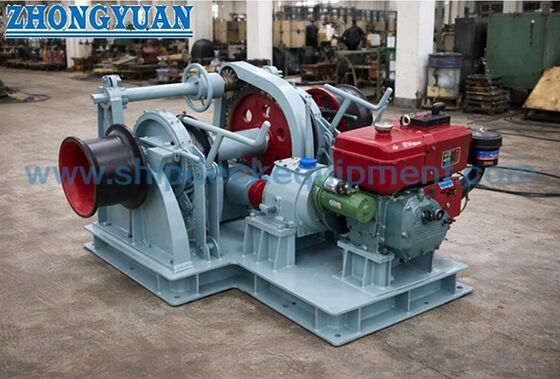

38mm Diesel Engine Driven Marine Anchor Windlass for Ship Deck | Double Gypsy Windlass
Product Overview
A 38mm marine anchor windlass is a type of ship deck equipment designed for anchoring and mooring operations using a 38mm anchor chain.
This diesel engine driven windlass provides stable pulling force, independent operation, and reliable performance in harsh marine environments. It is equipped with a gypsy wheel, gearbox, brake, and clutch system.
It is widely used in cargo ships, barges, and offshore vessels.
Quick Specifications
Chain Diameter: 38 mm
Chain Grade: Grade 2 / Grade 3
Working Load: 42–47 kN
Drive Type: Diesel Engine
Gypsy: Single / Double
Warping Head: Optional
Mooring Drum: Optional
Main Technical Parameters
|
Chain Size |
Gypsy Speed |
Working Load |
Holding Capacity |
|---|---|---|---|
| 36 / 38 mm | ≥9 m/min | 42.2 / 46.9 kN | 146.4 / 162.6 kN |
Anchor Windlass + Engine Selection
✔ Recommended Engine Power
For a 38mm anchor chain windlass:
Working Load: approx. 42–47 kN
Recommended Engine Power: 18–30 kW
✔ Selection Logic
Grade 2 chain → lower power requirement
Grade 3 chain → higher load, recommend higher power engine
Continuous operation → increase power margin
✔ Engineering Note
The final engine configuration should be selected based on classification society rules and actual working conditions.
Structure & Components
Structure & Components: Diesel engine | Worm gearbox | Gypsy wheel (for 38 mm chain) | Brake & clutch system | Base frame | Warping head (optional) | Mooring drum (optional)
How It Works
The diesel engine drives the windlass through a gearbox system.
The gypsy wheel engages the 38mm anchor chain to control anchoring and lifting operations, while the brake ensures safety.
Applications
Cargo ships | Barges | Offshore vessels | Port operations
Certifications & Advantages
Certifications
CCS / ABS / DNV / LR / NK / BV / KR / RINA / IRS / RS / CRS
Advantages
Designed for 38 mm anchor chain | Stable pulling force | Independent diesel operation | Easy maintenance
Ordering Information
MOQ: 1 Unit
Delivery Time: 90 Days
Customization: Available
FAQ
Q1: Is this windlass suitable for Grade 3 chain?
Yes, it supports both Grade 2 and Grade 3 anchor chains.
Q2: Can I choose engine brand?
Yes, multiple engine brands are available.
Q3: What is the typical vessel size for 38mm windlass?
Usually medium-sized cargo vessels and barges.
